Connecting to Data Exchange

In this section, we will start with the minimum amount of code necesary to start working with Data Exchange and once we have everything set, we will start exploring the SDK.

Client-side Data Model

The Data Exchange SDK is a client-side SDK for the Data Exchange service, written in .Net that provides:

  • a rich client-side Data Model,

  • automatic handling of read and write Deltas,

  • local storage for optimizing data operations,

  • UI component that integrates with the Autodesk Docs,

  • extensibility features that allows developers to customize the SDK as per their requirements (feature in progress).

To be able to connect to Data Exchange service, any connecter needs an instance of Client class:

public Client(SDKOptions sdkOptions)

which in turn requires an instannce of SDKOptions class, that works as the configurator for the the Client instance.

The documentation provides more details on SDKOptions Class, but the minimum amount of code required to create a valid SDKOptions instance and initialize the instance of Client class with it is the following:


var options = new SDKOptionsDefaultSetup()
{
    HostApplicationName = "BootstrapConnector",
    ClientId = "<YOUR_CLIENT_ID_HERE>",
    ClientSecret = "YOUR_CLIENT_SECRET_HERE",
    CallBack = "http://localhost:8080/",
    ConnectorName = "BootstrapConnector",
    HostApplicationVersion = "0.3",
    ConnectorVersion = "0.2"

};

var client = new Autodesk.DataExchange.Client(options);

It allows for many other options like Authentication, Storage, Hosting, logger etc., but in this case the default ones will be used and with them, the SDK will take care of getting for you a 3-legged token automatically.

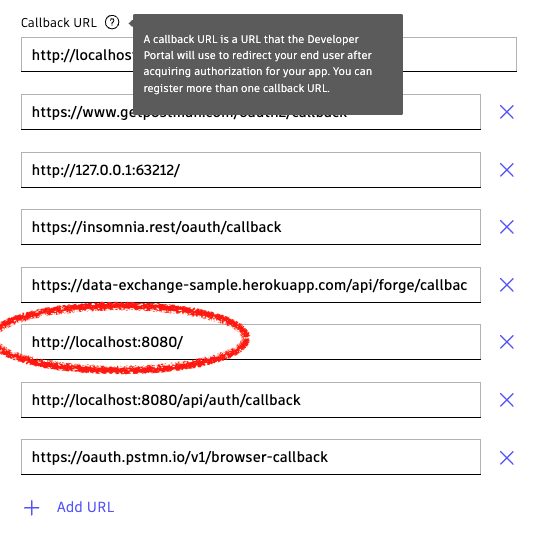

However, it is required for the CallBack specified in SDKOptions to match one of the Callback URLs that you have specified in your APS App:

callback

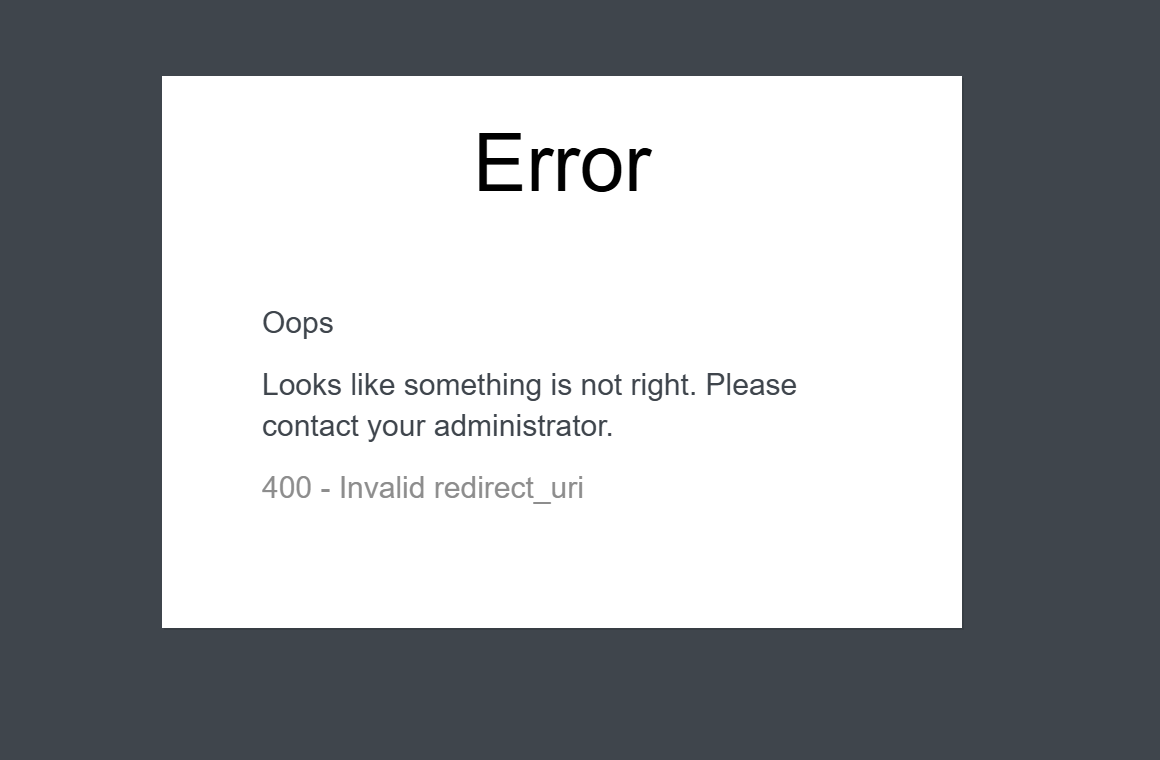

The SDK will use the value from the CallBack to create and endpoint and facilitate the 3-legged authorization, otherwise you should expect the following error:

callback_error

In this case we used the default AuthProvider (obviously you can create your own one), it is part of the Client instance now and can be used right away, to make sure that everything works fine:

  var account = client.SDKOptions.AuthProvider.GetUserAccountAsync().Result;

  Console.WriteLine($"Connector ready, using the account: {account.FirstName}");

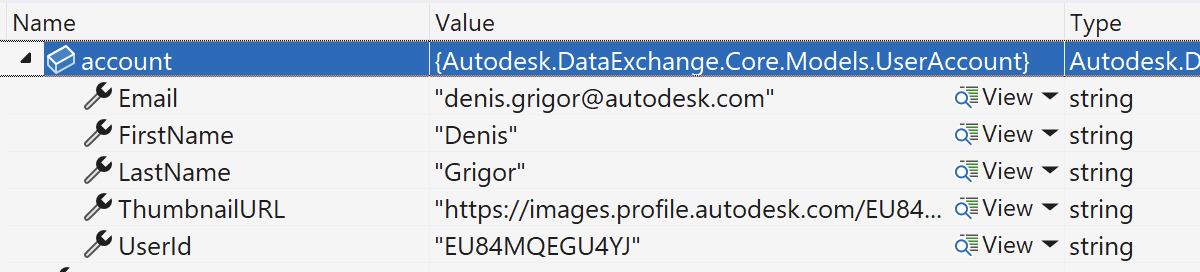

and get many other details of the person that authorized the App:

account

At this stage, everything should be set up and operating without errors. If there are any issues, please refer to the BootstrapConnector for reference on how it should look at this step.

Once everything is fine we can proceed further with Data Exchange .Net SDK exploration.

Next Step - Access Data and Geometry
