Creating exchanges from the scratch

Create exchanges using the following steps:

1. Create an empty data model:

   ElementDataModel model = ElementDataModel.Create(client);


   In previous section, when reading an existing exchange, we used the same call, except in this case we don’t provide any exchange data, indicating that an empty model should be created:

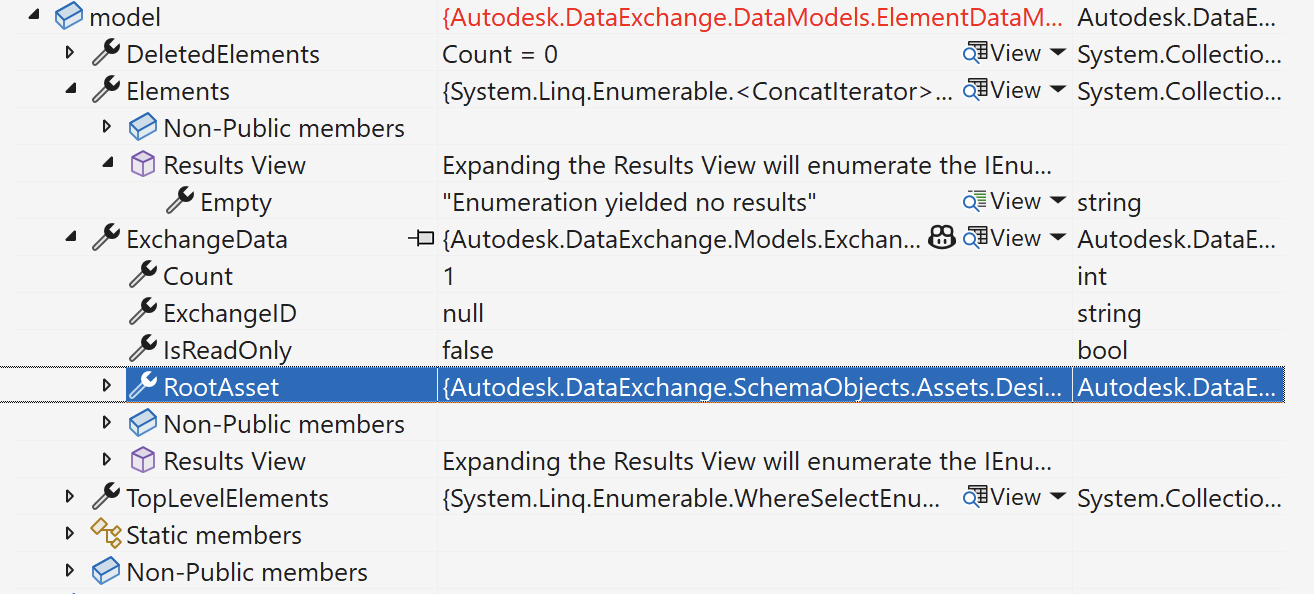

   Note that in ExchangeData there just one node and that is the Root node.

2. Add (at least) an element to the dataModel:.

   var my_wall = model.AddElement(new ElementProperties {
                                           ElementId = "SomeID_Here",
                                           Name = "My_Wall",
                                           Category = "Walls" });

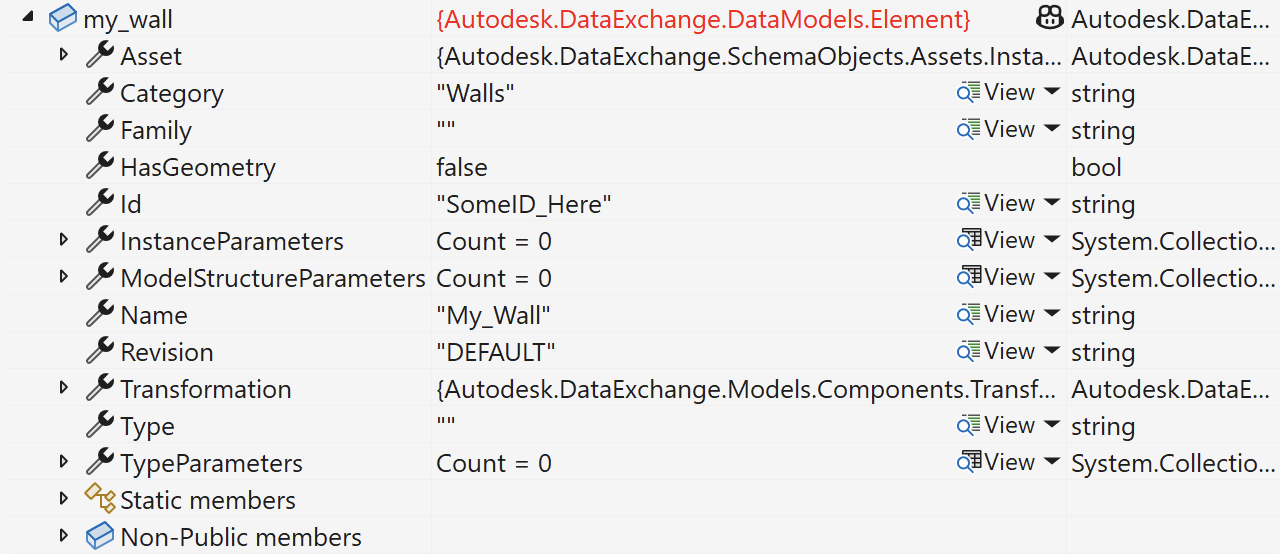

   Note that we added only the minimum necessary properties, but we can set also things like Family, Type and so one, otherwise they will be assigned default values:



3. Add geometry to the element. This might look complicated, yet once mastered, it will be streightforward.

    // specify how the geometry should look like: what color and how transparent it should be
    var redRenderStyle = new RenderStyle("Red", new RGBA(255,0,10,1),0.5) ;
    // create the geometry by specifying the STEP file and the render style
    var wallGeometry = ElementDataModel.CreateGeometry(new GeometryProperties("../../my_wall.stp", redRenderStyle));
    // create a list that will hold all geometries referenced by the element
    var my_wall_geometries = new List<ElementGeometry>();
    // add the geometries to the list
    my_wall_geometries.Add(wallGeometry);
    // insert the list of geometries into the needed element
    model.SetElementGeometryByElement(my_wall, my_wall_geometries);

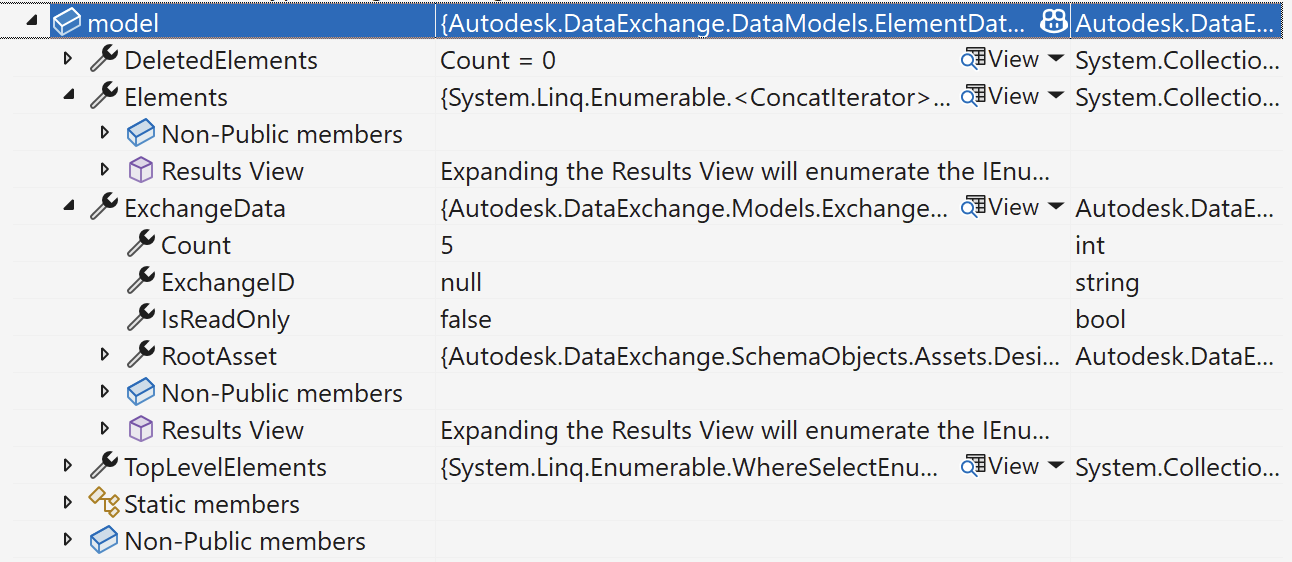

   Note that list of geometries are not added directly to the myWall element, but the ElementDataModel model is taking care of it because it builds a graph out of it and now we see in EchangeData a count of five instead of just one:



4. Add some properties to the wall element.

   There can be either Type parameter that will be common to all elements of the same Type, or there are Instance parameter that will be specific only to the element that it belongs to. In this case we will add a build-in instance paramater and we’ll cover the custom type parameters later:

    // add properties
    var my_wall_params = (StringParameterDefinition)ParameterDefinition.Create(Autodesk.Parameters.Parameter.DatumText, ParameterDataType.String);
    my_wall_params.Value = "Some wall description";
    my_wall.CreateInstanceParameterAsync(my_wall_params).Wait();

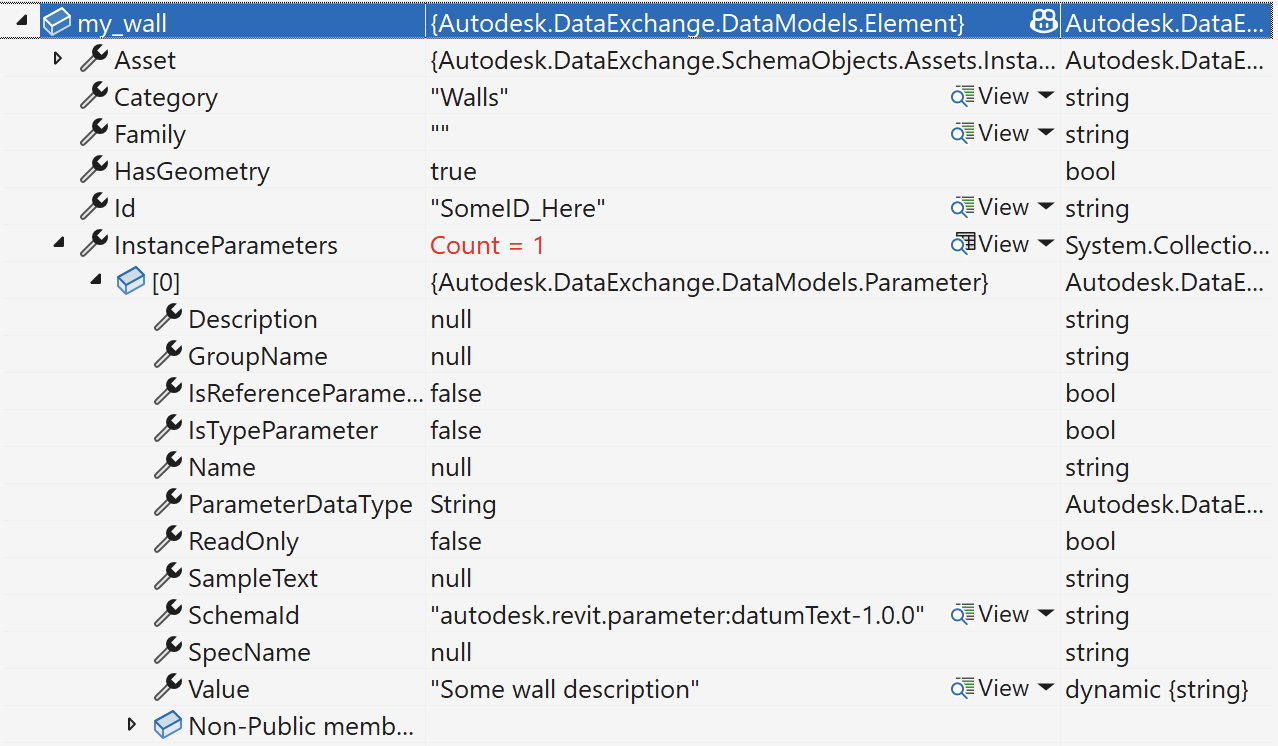

   and right away we notice that our element now contains an instance parameter:



   At this point our Model is populated with nodes and relationships, but exists only in memory of our computer and it needs a host. We create an exchange container where we specify where it will be hosted, where it will be placed, how it will be named and so on.

   At least for now, the only hosting option available is ACC, but in future even non-Autodesk ones will be possible:

    // Create exchange container
    var ExchangeCreateRequest = new ExchangeCreateRequestACC()
    {
        Host = client.SDKOptions.HostingProvider,
        Contract = new Autodesk.DataExchange.ContractProvider.ContractProvider(),
        Description = "just testing exchange creation",
        FileName = "my_custom_exchange",
        HubId = hubId,
        ACCFolderURN = exchangeDetails.FolderUrn,
        ProjectId = exchangeDetails.ProjectUrn,
    };



   Note that for ACCFolderURN, ProjectId and HubId we can use the very same value that we had when we accessed the exchange created from ACC, as they will be located in the same place.

5. Once the exchange conainer was defined, we ask the Data Exchange service, through client to create that exchange on ACC:

    var myTestExchangeDetails = client.CreateExchangeAsync(ExchangeCreateRequest).Result;

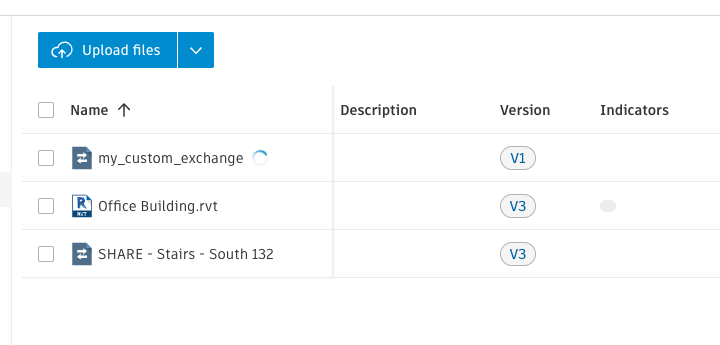

   At this point we will se that the exchange is created on ACC, but it is more of an empty shell for our model:



6. We have to sync our model into the created exchange, where we use the details from created shell:

    var exchangeIdentifier = new DataExchangeIdentifier()
    {
        ExchangeId = myCustomExchangeDetails.ExchangeID,
        CollectionId = myCustomExchangeDetails.CollectionID,
        HubId = myCustomExchangeDetails.HubId,
    };

    client.SyncExchangeDataAsync(exchangeIdentifier, model.ExchangeData).Wait();

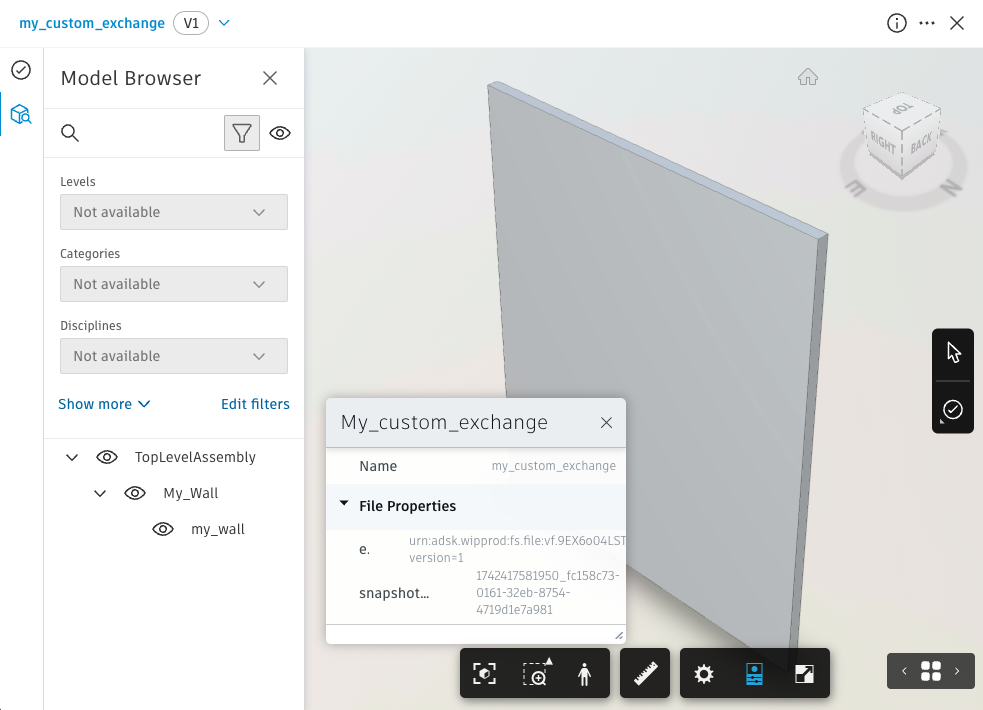

   and finally our exchange is created and we can visualize it in ACC:

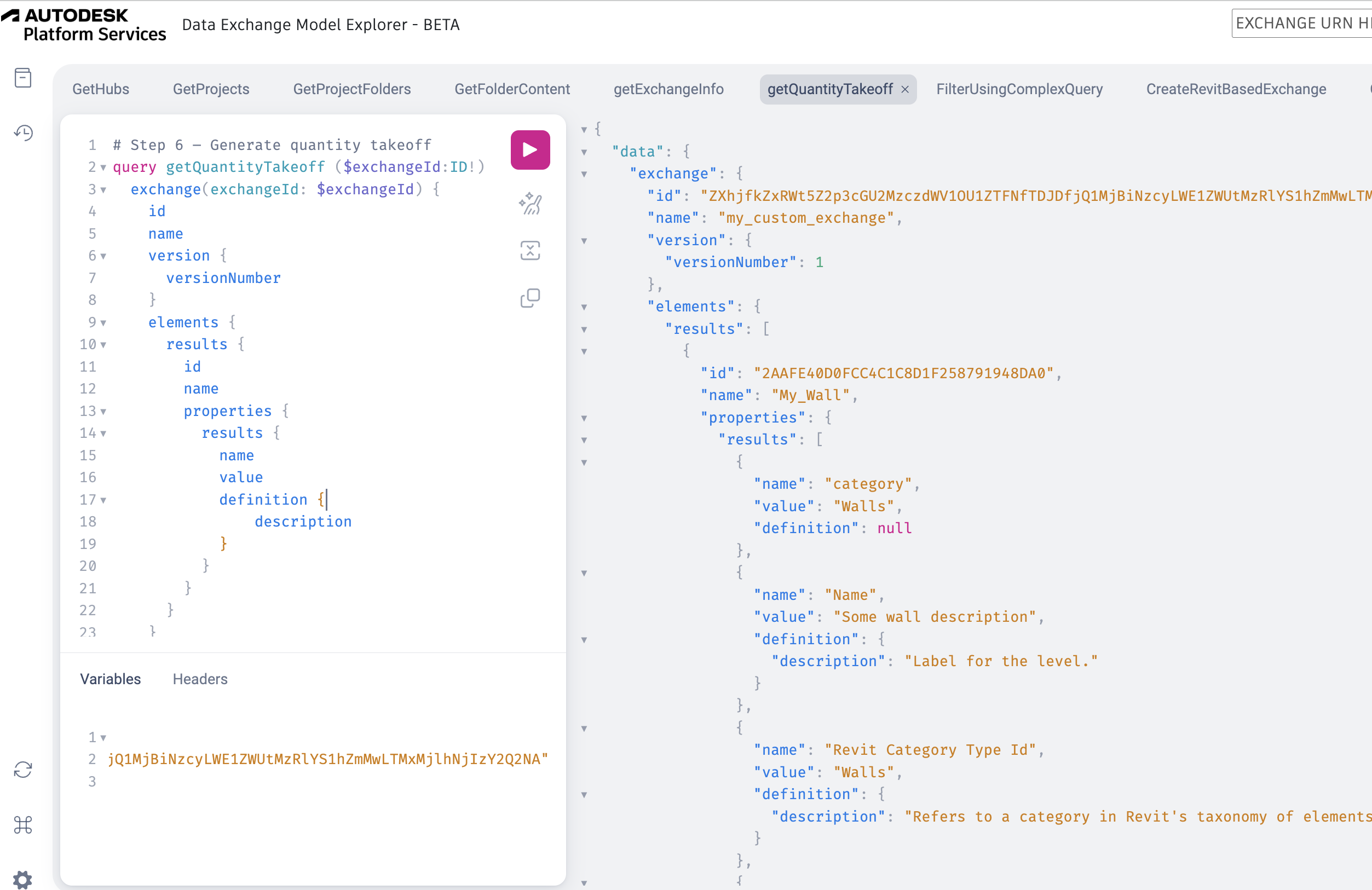

Using the Data Exchange Model Explorer we can also inspect the properties of newly created exchange:

Conclusion

At this point you have all the necessary ingridients to create exchanges from scratch, create elements, add geometries and properties to them and all this fully compatible with ACC.

In case you need a sample reference, check aps-dx-createexchange-form sample, which covers almost everything we discussed in this tutorial.

Stay tuned for other two samples:

• BasicExcelConnector - copy into Excel and keep in sync the properties of given category of elements for some analysis.

• ExchangeCloner - copy all the geometries and properties from an ACC created exchange and allows to freely add properties and geometries to it.
